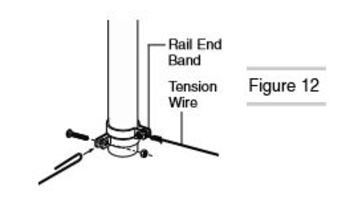

Wrap tension wire once around bottom rail end band carriage bolt. Using pliers, twist several times to secure (Fig. 12). Tension wire should run along the same side of the posts as the fabric. Apply tension wire clips no more than 24" apart, or as needed for securing the wire to the chain-link fabric.

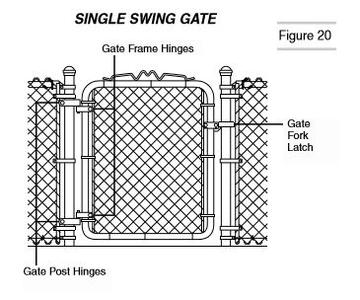

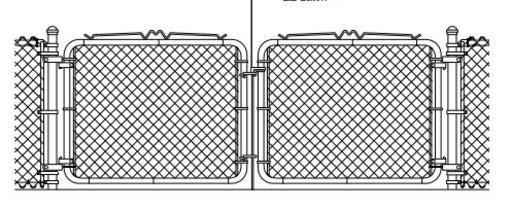

A similar installation procedure is used on both single swing and double swing gates (Figs. 20 & 21).
STEP 1 Apply gate post hinges to gate post approximately 8" from the top and bottom of the gate post with the top hinge pin pointing down and the bottom hinge pin pointing up. This will prevent the gate from being removed and/or from dropping off. Tighten all bolts securely.
STEP 2 Apply gate frame hinges to gate frame. Loosely fasten bolts so they can be easily adjusted on the gate frame. Hang gate(s) in place so that the bottom of the gate has approximately 2" of ground clearance. Tighten the bolts on the bottom frame hinge first, then adjust and tighten the bolts securely at the top.
STEP 3 Position gate fork latch at a convenient height. Tighten all bolts securely. NOTE: Adjust EZ Latch Assembly on the double swing gate to the correct height and tighten all bolts securely (Fig. 21).

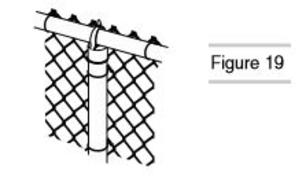

Fasten the fabric securely with fence ties spaced approximately 24" apart along the top rail and 12" apart on each line post (Fig 19). Finally, securely tighten nuts on all rail end bands and tension bands.
Budget Fence recommends that you always use a licensed and insured contractor to install any fence that is beyond your abilities.
** Digging can be very dangerous and you should call your local "Call before you dig" before ever digging in the ground.

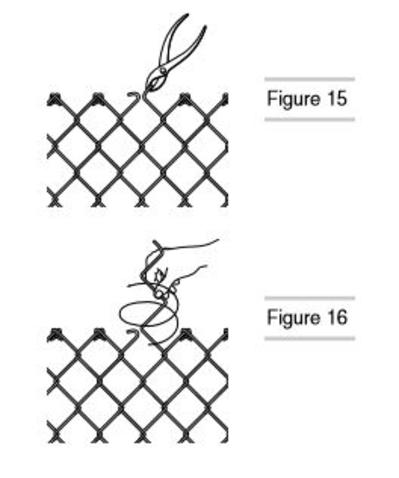

TO REMOVE EXCESS FABRIC: Remove the excess fabric with pliers by opening the top and bottom loops (knuckles) of a single strand of wire at the desired point of separation. Unwind the strand up through the links until the fabric comes apart (Figs. 15 & 16).
TO SPLICE SECTIONS OF FABRIC: Splice sections of chain-link fabric together using a single strand of wire, removed from the end of the fabric. Join the two sections by winding the loose strand down, corkscrew style, through the end links. Join and tighten the knuckles at top and bottom to secure. NOTE: Before sections can be spliced, a second strand may have to be removed to provide a proper mesh.
STEP 1 Dig terminal post holes approximately 8" in diameter and 30" deep, with sloping sides (Fig. 2). The exact diameter and depth will be determined by local weather and soil conditions.
STEP 2 With crayon or chalk, mark the ground line on posts. Height, above level ground, of terminal posts will equal the height of the fence fabric plus 2".
STEP 3 Center the terminal posts in the holes. Make sure the posts are plumb and set at the correct height. (Crayon mark should be at ground level.) Surround posts with concrete in a continuous pour. Trowel finish around posts and slope downward to direct water away.
Terraced Ground Corner post assembly is used at point A to allow fabric to follow terraced contour of ground (Fig. 6).
Very Uneven Ground Corner post assembly is used at points A and B when ground rises or drops more than 15" per 100 linear feet (Fig. 7).
STEP 1 Locate your property’s boundary lines. It is recommended that all posts be set approximately 4" inside the property line so that concrete footings do not encroach onto any adjoining property.
If you need a custom gate then just give a call and we can help get one fabricated for you, don't forget that we carry a full line of Bollards ranging from 2 7/8" to 4" in stock and can have any size bollard designed and custom fabricated wither it's a plated bollard, removable or you need bollards that can be set in concrete we got you covered. If you can imagine it then we can get it fabricated for you.
Chain link fence materials can be delivered to any part of town including Las Vegas, deliveries to Henderson and delivering fence materials to North Las Vegas.
STEP 2 Measure the overall length of your planned fence to determine how many feet of chain link fabric and top rail will be required (Fig. 1).
STEP 3 Mark the location of each terminal post (corner, end, and gate posts are called terminal posts) with a stake.
When determining the positions of gate posts remember that clearance for hinges, latches, etc., is included in the listed opening width of the gate. Therefore, if you ordered a gate for a 36" opening the post spacing should be exactly 36", inside post face to inside post face.
STEP 1 When the terminal post footings have hardened enough to stabilize the posts, stretch a string line taut between terminal posts. The string should be positioned on the outside face of the posts 4" below the top (Fig. 3). Height, above level ground, of line posts will equal the height of the fabric minus 2"

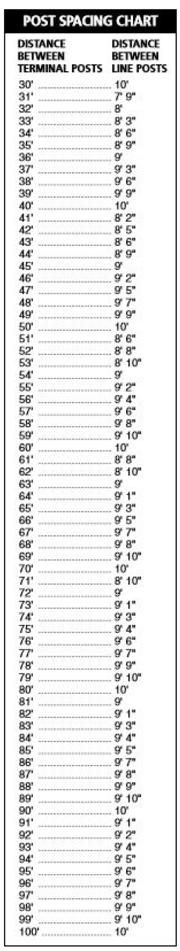

STEP 2 Measure the distance between terminal posts and refer to Post Spacing Chart to determine the distance between line posts. Dig line post holes 6" wide and 18" to 24" deep, with sloping sides (Fig. 4). Center the line posts in the holes. Make sure the posts are plumb, aligned with the centers of terminal posts, and set at the correct height. Surround posts with concrete in a continuous pour. Trowel finish around posts and slope downward to direct water away.
STEP 1 Temporarily insert a tension bar about 3 feet inside the unattached end of fabric. Securely fasten one end of the fence stretcher to the tension bar and the other end to the terminal post (Fig. 17). Stretch the fabric. The correct fabric tension should allow a slight amount of give when squeezed by hand. Remove the temporary tension bar.
STEP 2 Adjust the fabric to exact length by adding or removing wire as shown in figures 15 and 16. Insert a tension bar at the end of the fabric and connect to tension bands on terminal post.
HILLSIDE STRETCH — BIAS CUTTING: (IF NECESSARY)
If the top of the chain-link fabric does not create a right angle to the terminal post, the fabric must be cut on a bias so that the tension bar can slide into the fabric at the proper angle. Pull the chain-link fabric until the top or bottom, whichever is shortest, reaches the terminal post. The other corner of the fabric will extend past the terminal post. Insert the tension bar at an angle through the fabric parallel to the terminal post (Fig. 18). Remove the excess wire by cutting the strands that form the diamond at the tension bar leaving them long enough to bend over the bar. Do not cut every wire. The number of wires cut depends on the degree of slope and the height of the fence.
Chain link requires many different parts including posts, chain link wire, fittings, gates, posts, top rail, and even concrete for the footings if you plan to set them in the ground. are you looking for Barb Wire security fencing? give us a call (702) 850-2468
We carry gate fittings for gates including wheels, hinges, latches and gate hardware for over head gates that roll from side to side.
Swing gates require gate hinges that can clamp on or be welded on for extra security, swing gates can be locked using a fork latch or by using a drop rod assembly.
Slide gate hardware includes double wheel carriers and single wheels, we also carry all the rear track rollers and v-track from the ground.
NVLic. # 81535 A-21 Fence Limit 1.1 Million

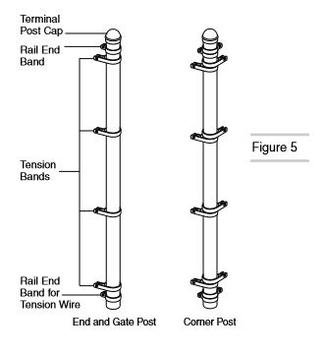

STEP 1 After concrete footings have been allowed to sufficiently harden, slip the rail end bands and tension bands onto the terminal posts. (Refer to parts list for the description and quantity of fittings that are required for various post types and heights.) The long flat surface of the tension band should face toward the outside of the fence (Fig 5).
NOTE: Take care not to spread or distort the fittings. STEP 2 Apply all terminal post caps.
Iron Fence / Chain Link Fence / Gates
Fence Materials - Installation - Supplies - Repairs in Las Vegas - Henderson - North Las Vegas - Nevada

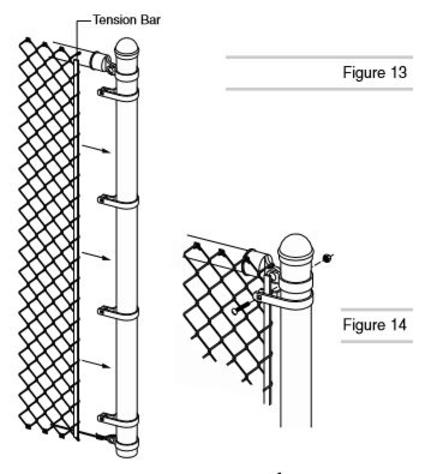

STEP 1 Starting at a terminal post, unroll chain-link fabric on the ground along the outside of the fence line to the next terminal post. Slide a tension bar through the first row of chain-link diamonds. Fasten evenly spaced tension bands (already on the post) to the tension bar, fabric combination using 5/16" x 1-1/4" carriage bolts with heads to the outside of the fence (Figs. 13 & 14).
STEP 2 Walk along the fabric and stand it up against the fence frame, taking out the slack as you go. Loosely attach fabric to top rail with a few fence ties to hold it in place. Separate enough fabric from the roll to span the opening between the terminal posts.
Las Vegas, NV

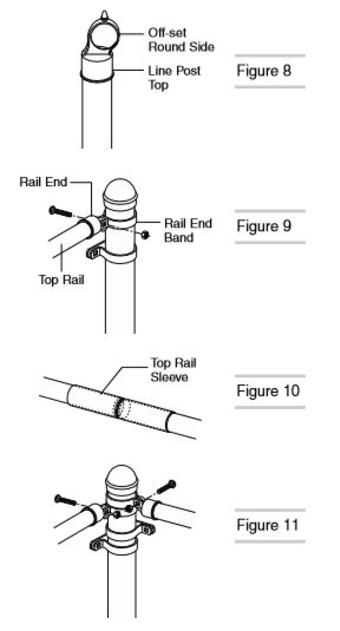

STEP 1 Place line post top on the top of each line post. The off-set round side should be toward the outside of the fence (Fig. 8)
